Latest level of development in milling cutters with one-piece inserts

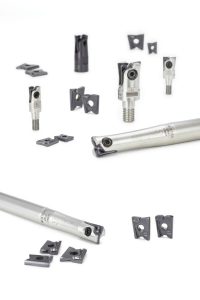

UNIWORX ® PLUS is the new universal milling system at the market.
Outstanding system characteristics make the UNIWORX ®PLUS a true universal product to satisfy even demanding cutting operators. By using high-precision, ground inserts with two different geometries, every milling body can be turned into a corner radius or high-feed milling cutter.
Perfectly matched design details in terms of seat, insert and insert material properties ensures a maximum of process safety, excellent durability, and superior cutting speeds in any application.
Our engineers provided all available indexable inserts with an asymmetric contact surface and a readily identifiable marker to facilitate proper installation. This is made even more straightforward by the prismatic bore designed to keep the mounting screw perfectly centred.
Also, note the unique coolant supply that takes place via a channel in the insert and discharges into a fan port in order to speed up the cooling medium.
The small corner radius of the smoothing inserts minimises the cutting pressure and displacement. What’s more, it opens up machining options right down to the tiniest of corners.
A first-rate milling cutter system, UNIWORX ® PLUS comes with inserts in the carbide metal grade K10 and featuring a wear-resistant PPTi coating. Tool options include screw-in and shaft cutters or the proprietary, ultra rugged DUOPLUG ® connector.
Benefit from exclusive UNIWORX® PLUS set offers. While stocks last!
