Fitted with new inserts, SLOTWORX® HP changes from a high-feed to a square shoulder and slot milling cutter

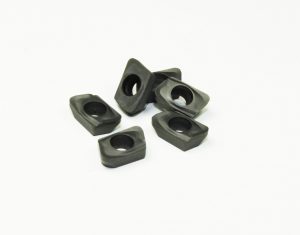

The new shoulder face milling insert for the well-known SLOTWORX®HP milling system
The SLOTWORX® HP milling system with its new shoulder face milling inserts r = 0.8 mm which is known for its high performance in the high-feed range is even more versatile than before.
The symbiosis of an especially innovative insert geometry with the proven carbide and an extremely smooth and wear-resistant coating guarantees long tool life when it comes to finishing vertical and plain surfaces.
High-performance cutting of Inconel and titanium
At the same time, the positive angle of twist in the mounting position ensures minimum drift. Both soft materials and hardened steels can be machined with the same high degree of performance thanks to the positive protective chamfer and the positive rake angle. Even the machining of high-temperature alloys, such as Inconel and titanium, is possible without limits when these cutting materials are used.
3 different cutting materials for SLOTWORX® HP: Shoulder face milling inserts r = 0.8 mm, high-feed inserts without concave moulding, high-feed inserts with concave moulding r = 2 mm
Thanks to its small dimensions from 10 mm Ø onwards, SLOTWORX® HP can even substitute solid carbide tools in certain subareas.
SLOTWORX® HP is unbeatable as a square shoulder and slot milling cutter when the standard working depth of solid carbide corner radius milling cutters is no longer sufficient and lateral surfaces and bottoms in small pockets or moulds and mould inserts, for example, are to be finished.
